Heat Transfer Mechanism and Type
· Strong Metallurgical Bond of Porous Coating and Base Tube
· High Porosity Coating
· Interconnected Channels
· Significantly Enhanced Boiling Heat Transfer

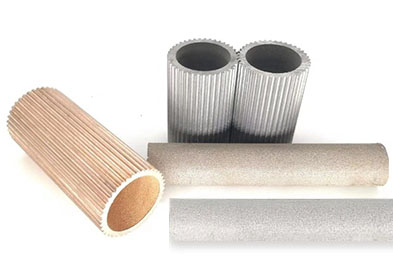

· Flute Changes Liquid Film Distribution
· Strong Metallurgical Bond of Porous Coating and Base Tube
· High Porosity Coating
· Interconnected Channels
· Significantly Enhanced Boiling Heat Transfer
· Flute Changes Liquid Film Distribution

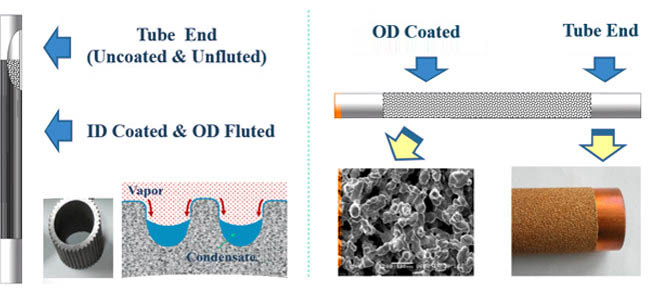

OD Bare or Fluted, Vertical Exchangers Only
ID Bare or Finned, Horizontal Exchangers Only
Copper, Copper-nickel, Carbon Steel, Stainless Steel, Low Temperature Steel, and Heat-resistant Steel, etc.

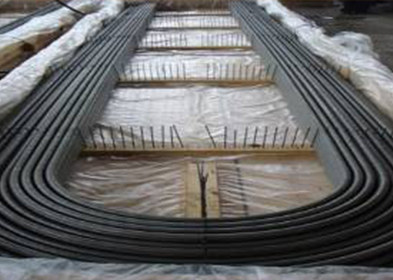

Straight or U-shaped
No greater than 6.5m for its length
No greater than 25m for its length
Custom configurations can also be considered depending on the project specifications and customer requirements
裝置副本16043183870-16140361234.png)
點4-15262453644.jpg)
點2-15260989726.jpg)
High Overall Heat Transfer Coefficient
Reduced Number of Shells and / or Smaller Equipment
Stable Operation at low LMTD
Energy Savings Through Improved Heat Integration or Multiple Effect Evaporation
Increase Production Capacity (Revamp / DeBottlenecking)
Recovery Waste Heat to Generate Higher Value Stream
Successfully applied to almost 300 Heat Exchangers covering more than 80 process units
· Raffinate, Extract Column Reboiler
· Benzene, Toluene, Xylene Column Reboiler
· Stream Generators-(Heavy Aromatics, Raffinate, Extract)
· Reformate Splitter Reboiler
· Depentanizer, Dehexanizer Column Reboiler
· Stabilizer Column Reboiler
· Desorption Column Reboiler
· Propylene-Propane Splitter Reboilers/Condenser
· Depropanizer Heat Recovery Reboiler
· Multiple Effect Evaporator Reboilers
Petrochina Urumchi Petrochemical Co., Ltd. 1 Mt/a Aromatics Project
Sinopec Hainan Petro &Chemical Co., Ltd. 1 Mt/a Aromatics Project
GS Qingdao Lidong Chemical Co.,Ltd 700KTA Aromatics Project
Ningbo ZhongJin Petrochemical Co.,Ltd. 1.6 Mt/a Aromatics Project
Sinochem Hongrun Petrochemical Co., Ltd. / Catalytic Reforming Project
Weifang Hongrun Petrochemical Technology Co., Ltd/ Catalytic Reforming Project
Zhejiang Petrochemical Co., Ltd. 2 Mt/a Aromatics Project
Hengli Petro. Co., Ltd. 20Mt/a Refining-chemical Integration Project
Sinochem Quanzhou 1 Mt/a Ethylene and Refinery Revamping Project
Sino-Kuwait Joint-venture Guangdong 4.2 Mt/a Catalytic Cracking Project
Sinopec Yangzi Petro &Chemical Co. Ltd. 180KTA/300KTA EO/EG Project
Sino-Kuwait Joint-venture Guangdong 250KTA/400KTA EO/EG Project
Zhejiang Petrochemical Co.,Ltd./40 million tons/year Aromatics and Disintegration Unit of Refining and Chemical Engineering Integration
ProjectDongying-Weilian Chemistry/2 million tons of p-xylene per year (in-process)
Sino-Tech Joint Venture Guangdong Refining and Chemical Integration Project/2 million Tons of Young Hydrocarbon Recovery Unit (in-process)
EOEG Unit (in-process) of Lianyungang Petrochemical's 3.2 million tons/Young Hydrocarbon Comprehensive Processing and Utilization Project
Zhejiang Petrochemical Co., Ltd. / Aromatics Plant 40 million tons/year Refining & Chemical Integration Project
Shenghong Refinery (Lianyungang) Co., LTD. / Shenghong Refinery Integration project Aromatics and disproportionation unit
CNOOC?Huizhou Petrochemical Co., LTD. / Aromatics joint plant
Realized……controllable manufacture of SPST heat exchangers; Developed the whole manufacturing technology and equipment of SPST.
Running successfully with good performance; Listed as a major equipment achievement
標準：燒結型高通量換熱管-16171739252.jpg)
-15361020617.jpg)
National Energy Science & Technology Progress Award (3rd Class, 2011)
Higher Education Outstanding Scientific Research Output Awards (2nd Class,2017)
China Industry-University-Research Institute Collaboration Association Innovative Achievement Award(1st Class,2016)
Shanghai Science & Technology Progress Award (1st Class,2009)
Jiangsu Science and Technology Advancement(3st Class,2012)
